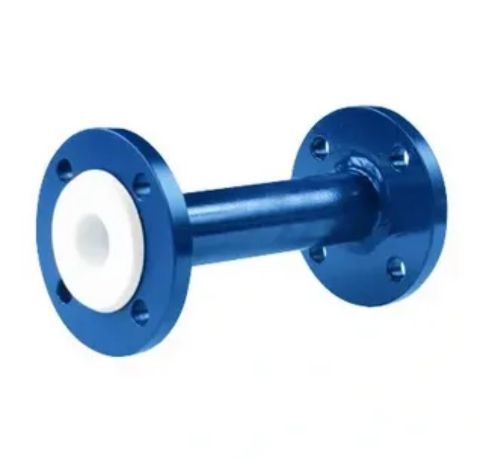

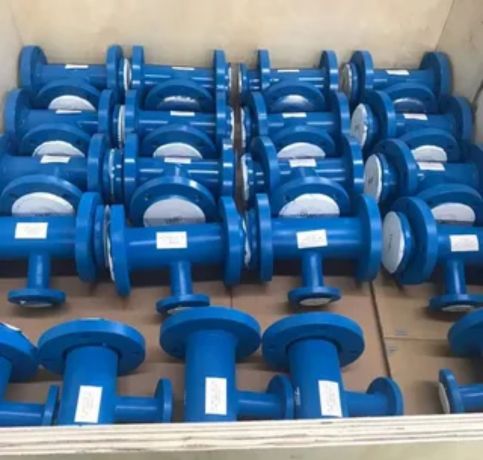

Leading the industry in Turkey, we are engaged in the production of high-quality PTFE, FEP, and PFA-lined pipe spools and flanged pipe spools. Pipe spool is a factory-assembled section of a piping system consisting of pipes, flanges, and fittings combined into an installation-ready unit. It allows for easy on-site installation and reduces construction time. Lined spools, especially PTFE-lined, offer superior corrosion resistance, chemical inertness, and smooth flow, hence ideal for processing aggressive media. Advantages are reduced maintenance, extended service life, and compatibility with high volumes of chemicals. Custom manufacturing allows precise fitting to project requirements, guaranteeing quality and fit. The chemical processing, oil & gas, water treatment, and pharmaceutical sectors are well served with PTFE lined pipe spools in Turkey.

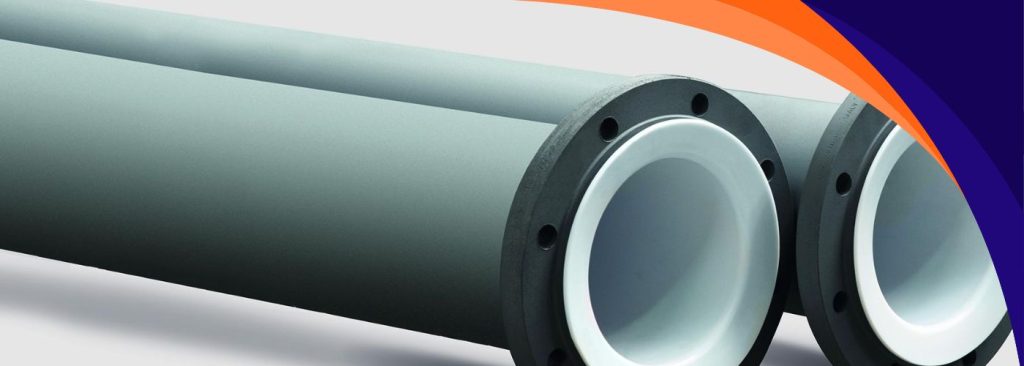

A PTFE-lined pipe spool is a section of pipe having an internal lining of Polytetrafluoroethylene (PTFE), a highly inert and non-reactive fluoropolymer. It possesses the mechanical properties of steel and chemical resistance of PTFE, which makes it ideal for carrying corrosive or poisonous chemicals. The PTFE lining provides protection against metal corrosion, smooth fluid passage, and is resistant to high temperatures as well as aggressive media. These spools are pre-assembled for quick installation and are used extensively in such sectors as pharmaceuticals, petrochemicals, chemicals, and water treatment where purity and corrosion resistance are essential. They enable system life extension along with lower maintenance requirements.
Emre PTFE Lining is a leading supplier of PTFE Lined Pipe spool in Turkey, Istanbul, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Nominal Bore | Internal Dia. (d) | PTFE Liner Thickness (t) | FLANGE P. C. D | Flange Hole Dia. | Raised | Max.Length | Pipe Schedule | |
|---|---|---|---|---|---|---|---|---|
| mm | Inches | (± 1 mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 |
| 40 | 1.5 | 33.8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 |
| 100 | 4 | 95.2 | 3.8 | 190.5 | 19.0 | 157 | 3000 | 40 |
| 150 | 6 | 145.1 | 4.5 | 241.3 | 22.2 | 216 | 3000 | 40 |
| 200 | 8 | 197.4 | 5.0 | 298.4 | 22.2 | 270 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 300 | 12 | 300.1 | 6.0 | 431.8 | 25.4 | 381 | 3000 | 30 |
PTFE lining protects the pipe spool from highly corrosive chemicals, acids, and solvents, extending the system’s lifespan.
Reduces friction, prevents buildup, and ensures consistent flow of media, even with sticky or aggressive substances.
Performs reliably under a broad range of temperatures and pressures without degrading or reacting.
Minimizes the need for frequent inspections, repairs, and replacements, lowering operating costs.
It’s a pre-fabricated section of pipe lined internally with PTFE, used to connect parts of a piping system.
PTFE provides excellent resistance to corrosion, chemical attack, and high purity contamination.
They typically range from DN15 to DN600, but custom sizes can also be manufactured.
Yes, they are designed to handle specified pressure ratings (often up to 10 bar or more).
They work with most chemicals but may not be compatible with alkali metals or highly reactive substances
