PTFE-lined hose pipes are extremely versatile, with excellent chemical resistance and durability. Designed to work over a wide temperature range they are the ideal selection for chemical process, pharma and food processing applications. The inert quality of PTFE prevents contamination and offers compatibility with aggressive fluids and gases. PTFE-lined hoses are also non-stick, minimizing residue buildup and ease of clean. Their extremely high flexibility and excellent pressure-handling characteristics ensure safety and reliability. In addition, PTFE-lined hoses have extended service lives, which save on maintenance and facilitate more efficient operation.

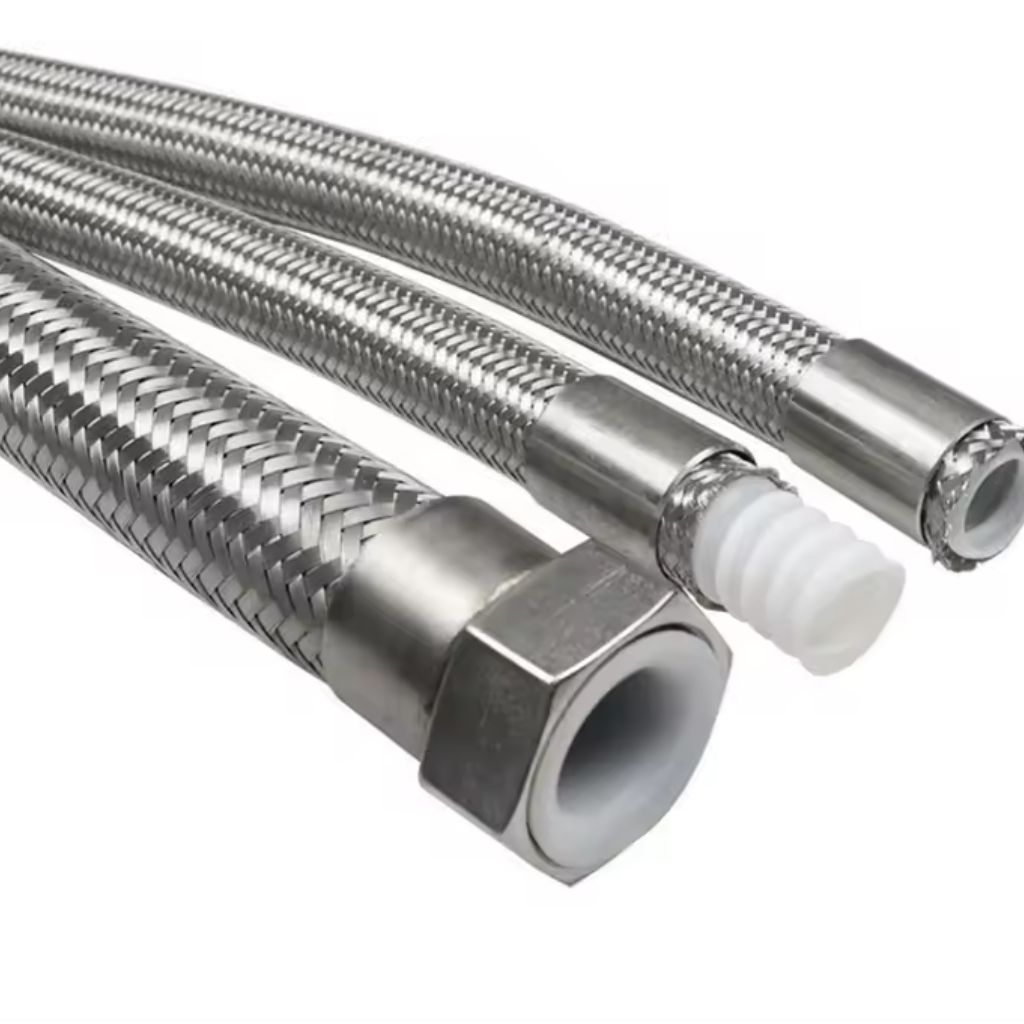

A PTFE lined hose pipe is a multipurpose, heavy-duty fluid conveyance solution. It possesses a very good non-stick surface, heat stability, and excellent chemical resistance in the form of an internal PTFE liner. With stainless steel or other reinforcing materials traditionally used as reinforcement, it possesses high tensile strength and flexibility and therefore is very useful for demanding operations in industries like chemical processing, pharmaceutical manufacturing, and food processing. PTFE lined hoses can resist severe temperatures, corrosion resistance, and contamination protection to ensure safe and efficient transfer of aggressive or sensitive media like acids, solvents, gases, and high-purity fluids.
Hose Material: AISI 304 (DIN EN 1.4301) / AISI 321 (DIN EN 1.4541)/AISI 316L (DIN EN 1.4404)
Hose Inner Lining: PTFE
Thickness of PTFE Lining: 2 mm to 4 mm

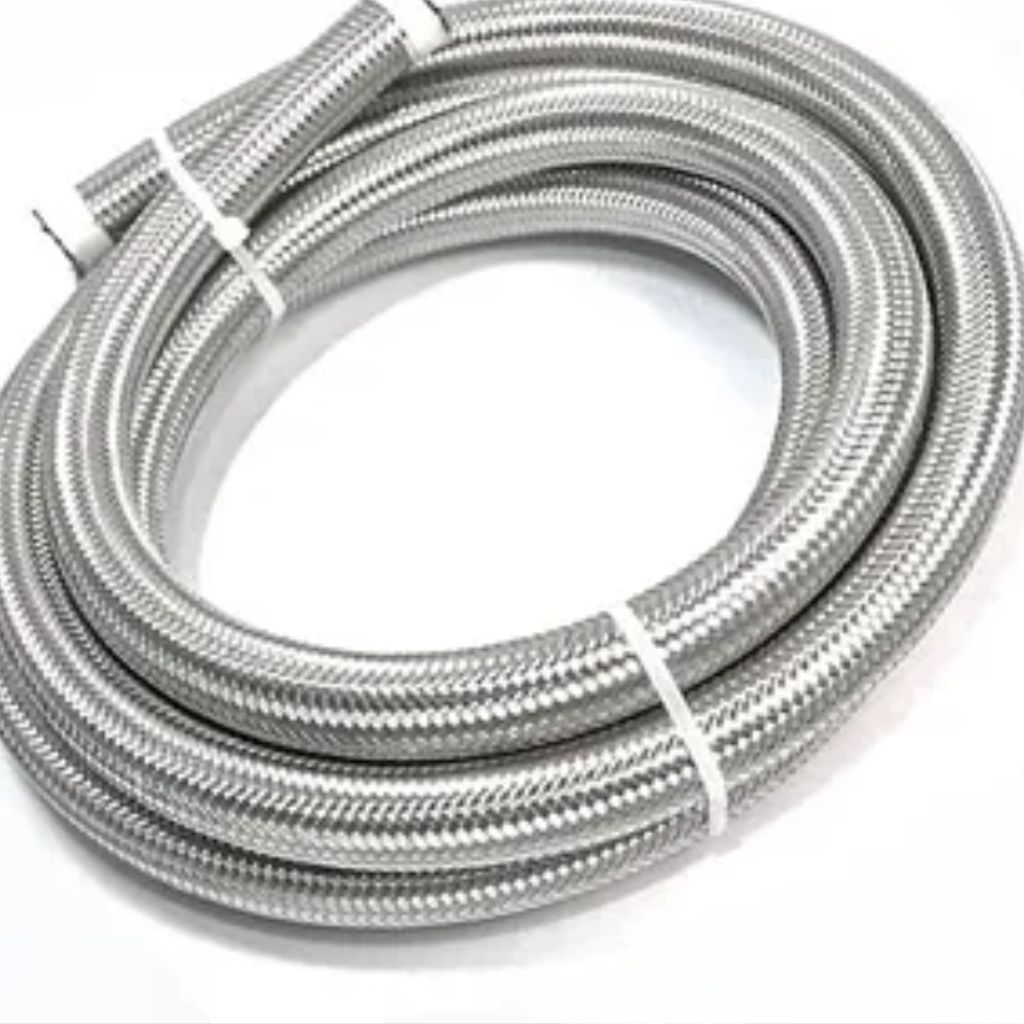

Braid Material: AISI 304 (DIN EN 1.4301) / AISI 316L (DIN EN 1.4404)
Braid Type: Single Wire Braid
Hose Size: DN 25 (1” NB) to DN 200 (8” NB)
Hose Length: 0.300 Meter. to 3 Meter.

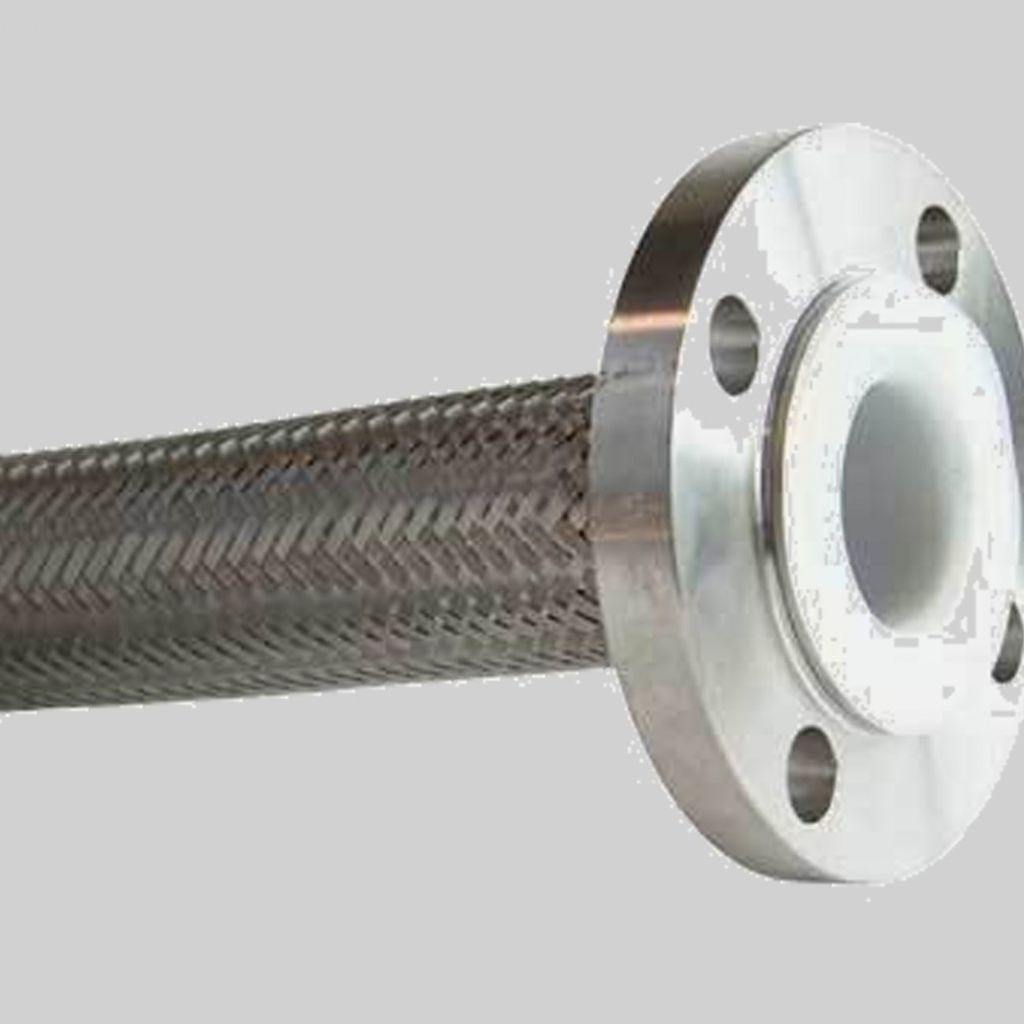

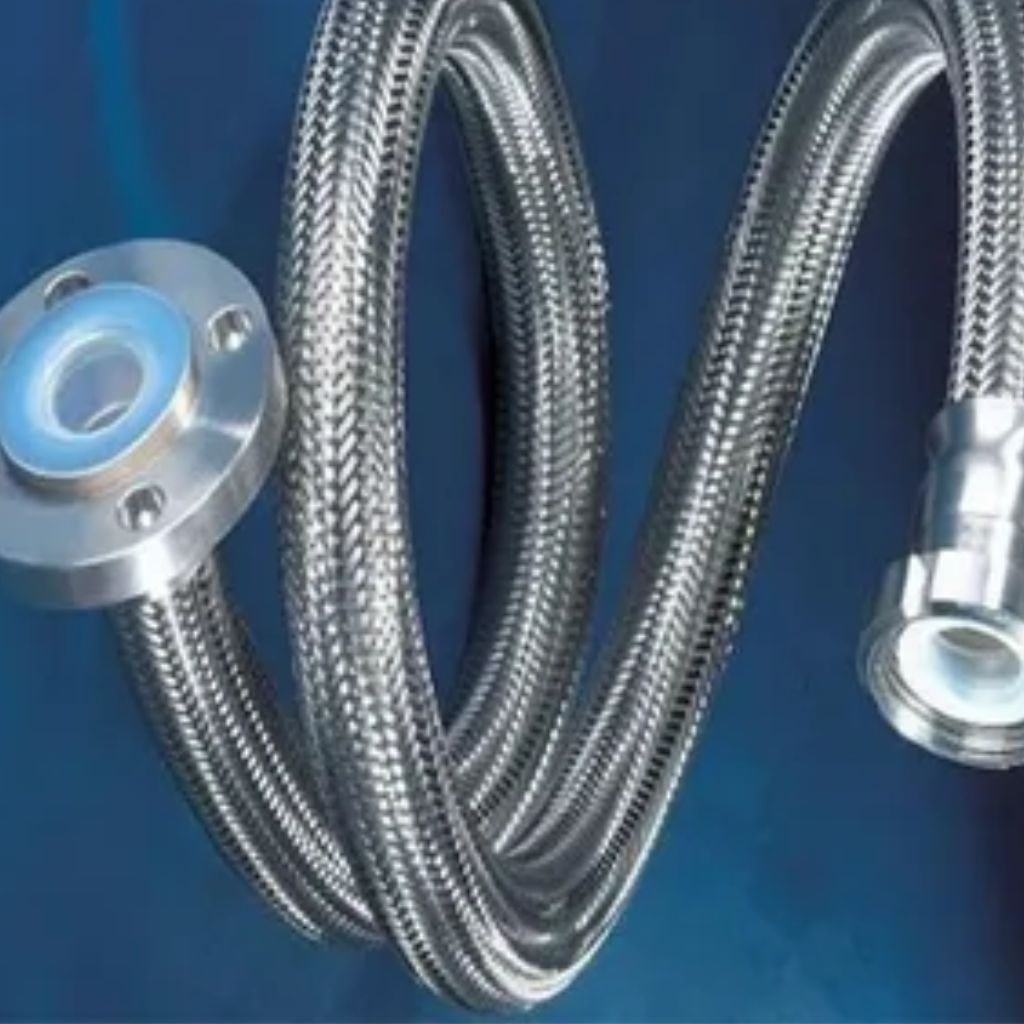

End Fittings: Fixed Flange / Swivel Flange as per ANSI B16.5 150#, 300# / DIN PN 10, PN 16, PN 40
Emre PTFE Lining is a leading supplier of PTFE Lined Hose Pipe in Turkey, Istanbul, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size (NB) | B | C | D | Liner | Lining Thik (- 0, + 0.25) |
Flange | Flange DIM.Std. |
L | Length | Bend Radius (INCH) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | ||||||||||
| 25 | 52 | 71 | 48 | PTFE | 2.67 | SS 304 | ANSI B 16.5 # 150 | As Req. | 150 | 3000 | 12″ |
| 40 | 52 | 78 | 68 | PTFE | 2.67 | -DO- | -DO- | -DO- | 150 | 3000 | 15″ |
| 50 | 65 | 90 | 88 | PTFE | 3.2 | -DO- | -DO- | -DO- | 150 | 3000 | 21″ |
| 80 | 65 | 90 | 117 | PTFE | 3.2 | -DO- | -DO- | -DO- | 200 | 3000 | 28″ |
| 100 | 92 | 104 | 152 | PTFE | 3.5 | -DO- | -DO- | -DO- | 300 | 3000 | 46″ |
| 150 | 106 | 129 | 203 | PTFE | 3.8 | -DO- | -DO- | -DO- | 350 | 3000 | 65″ |
It meets various hygiene and safety standards for handling sensitive or consumable products.
PTFE is an excellent insulator, making the hoses suitable for applications where electrical conductivity needs to be minimized.
These hoses can handle high-pressure applications due to their strong reinforcement layers.
PTFE has a low coefficient of friction and a non-stick surface.
A PTFE lined hose pipe is a flexible hose with an internal lining made of PTFE (Teflon), offering high resistance to chemicals, heat, and pressure.
PTFE provides excellent chemical resistance, prevents contamination, and ensures smooth flow with minimal friction, making it ideal for handling aggressive or sensitive fluids.
It is commonly used in chemical processing, pharmaceutical, food and beverage, and oil & gas industries for transferring corrosive or high-purity fluids.
Yes, PTFE-lined hoses are suitable for high-pressure applications due to their exceptional chemical resistance, high-temperature tolerance, and ability to withstand significant pressure without compromising flexibility or performance.
PTFE-lined hose pipes offer superior chemical resistance, higher temperature tolerance, lower friction, durability, and non-stick properties compared to traditional rubber hoses, ensuring reliable performance in demanding industrial and chemical applications.
